Foldable Industrial Grade Drone 1080P 10km With 10000mAh Battery HK-M100
Foldable Load Bearing Drone 1080P 10km With 10000mAh Battery HK-M100
Product Specification
Drone | |
Take off weight | about 1992g |
Load | 1000g |
Wheelbase | 500mm, foldable |
Maximum ascend speed | 5m/s |
Maximum decsend speed | 4m/s |
Maximum speed | 17m/s |
Max Service Ceiling Above Sea Level | 5000m |
Flight time | 40mins(no load) ,29mins(full load) |
Maximum distance | 1080P 10km |

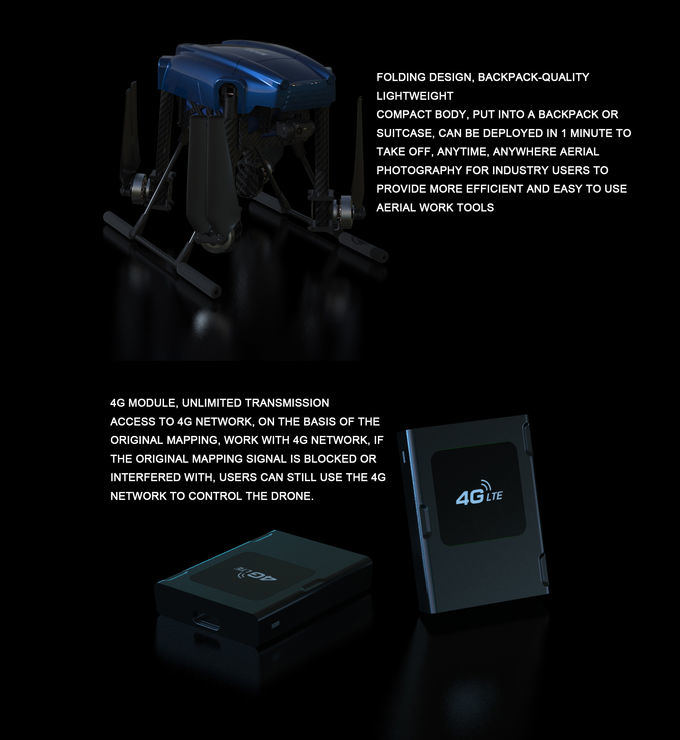

4G Extended Image Transmission | Global 4G image transmission, unlimited distance |
Satellite Positioning Systems | GPS/GLONASS |
Flight control | Compatible with Mavlink protocol flight control |
Operating Temperature Range | -5-40℃ |
3-axis brushless gimbal | |
Stabilization | 3-axis(pitch ,roll,course) |
angle | Pitch:-135°~ 60° Roll:-45°~45° Course:-27°~27° |
Controllable Range | Pitch:-90°~30° |
Jitter Amount | ±0.005° |
Camera | |
Lens | Angle:80° Focal length:24 mm Aperture:f/2.8 Focus: 1 meter to infinity |
ISO | Video:100-3200(auto) image:100-3200(auto) |
Sensor | 1/3.02"CMOS,13mp |
Image Resolution | 13mp |
Video Resolution | 2.7K,25 FPS |
Zoom | 6times |
Gimbal | 3-axis brushless motor gimbal |
Operating Temperature Range | -5-40℃ |
Thermal imaging infrared camera | |
Sensor | Vanadium oxide uncooled infrared focal plane detector; |
Zoom | 4.3mm |
Sensor resolution | 256×192 @25Hz |
Infrared temperature measurement accuracy | ±2℃ or ±2% |
Measuring range | Industrial temperature measurement: - 15 ℃~ 150 ℃ (high image quality) 50 ℃~550 ℃ (wide range) Biothermometry: 30 ℃~42 ℃ |
Effective measurement distance (person) | about 150m |
Pixel spacing | 12 μm |
Wavelength range | 8-14 μm |
Focusing mode | Non-thermal prime lens |
Operating Temperature Range | -5-40℃ |
Battery | |
Capacity | 10000mAh |
Voltage | 14.8v |
Type | 4s LiHv |
Weight | 770g |
Operating Temperature Range | -5℃-40℃ |
RC | |
Maximum distance | 10km |
EIRP | 2.4G <30dBm(FCC) ,<20dBm(FCC) |
usage time | 2-4hours |
Operating Temperature Range | -5-40℃ |
Charger | |
Input voltage | AC110v-240v |
Output voltage | DC16.8v |
Charge time | <2h |
Weight | 800g |
Product Description
Load Bearing Drone is an unmanned aerial vehicle (UAV) specifically designed and equipped to carry heavy loads. It is capable of autonomously lifting and transporting objects, materials, or equipment from one location to another. The drone is equipped with powerful motors, rotors, and a sturdy frame to support and distribute the weight of its load.
Load Bearing Drones are typically equipped with advanced sensors, GPS systems, and onboard cameras to ensure accurate navigation, obstacle avoidance, and safe operation. They can be programmed to follow pre-defined routes or operated remotely by a human operator who monitors and controls the drone's movements.
The payload capacity of Load Bearing Drones can vary depending on their size, design, and specifications. Some models can carry loads ranging from a few kilograms to several hundred kilograms. They may also feature additional features such as automated loading and unloading mechanisms, adjustable harnesses, or specialized attachments to secure and stabilize the carried load during flight.
Product Features
Application
Q: Are you a manufacturer or trade company?
A: We are the manufacturer.
Q: Do you accept customization?
A: Yes, we accept customization both on software & hardware and logo branding, color boxes, as well as packaging.
Q: What is your warranty policy?
A: One-year warranty, replacement, or repair services shall be provided under non-artificial quality issues.
Q: What's your MOQ?
A: Our MOQ is 1000pcs, trial orders, and samples are also available.
Q: How about the lead time and delivery time?
A: The stocked sample shall be sent out within 1-3 days after payment is received if the model is stocked
The lead time for mass quantities will be sent out within 30-35 days.
Delivery time : 3-7 days to arrive at destination after delivery if sent by international express like DHL, UPS, FedEx, etc.
Sea Transportation: 25-30 days after sailing
Q: How long does it take for the Infrastructure Inspection Drone to be delivered?
A: The Infrastructure Inspection Drone will be delivered within 3-7 work days.
Q: Do you provide SKD service?
A: Yes, we can do SKD orders, if your company can assemble yourself, the MOQ is 1000pcs.
Q: What is the Supply Ability for the Infrastructure Inspection Drone?
A: The Supply Ability for the Infrastructure Inspection Drone is 100,000 pcs per month.
Q: Where are the drones shipped from?
A: We send drones from our Shenzhen factory, or we can send them from Vietnam and the Philippines.
Q: Do you provide any value-added services for particular purposes?
A: We can dispatch our professional engineers to your company for drone assembly if your order quantity reaches our requirements.
